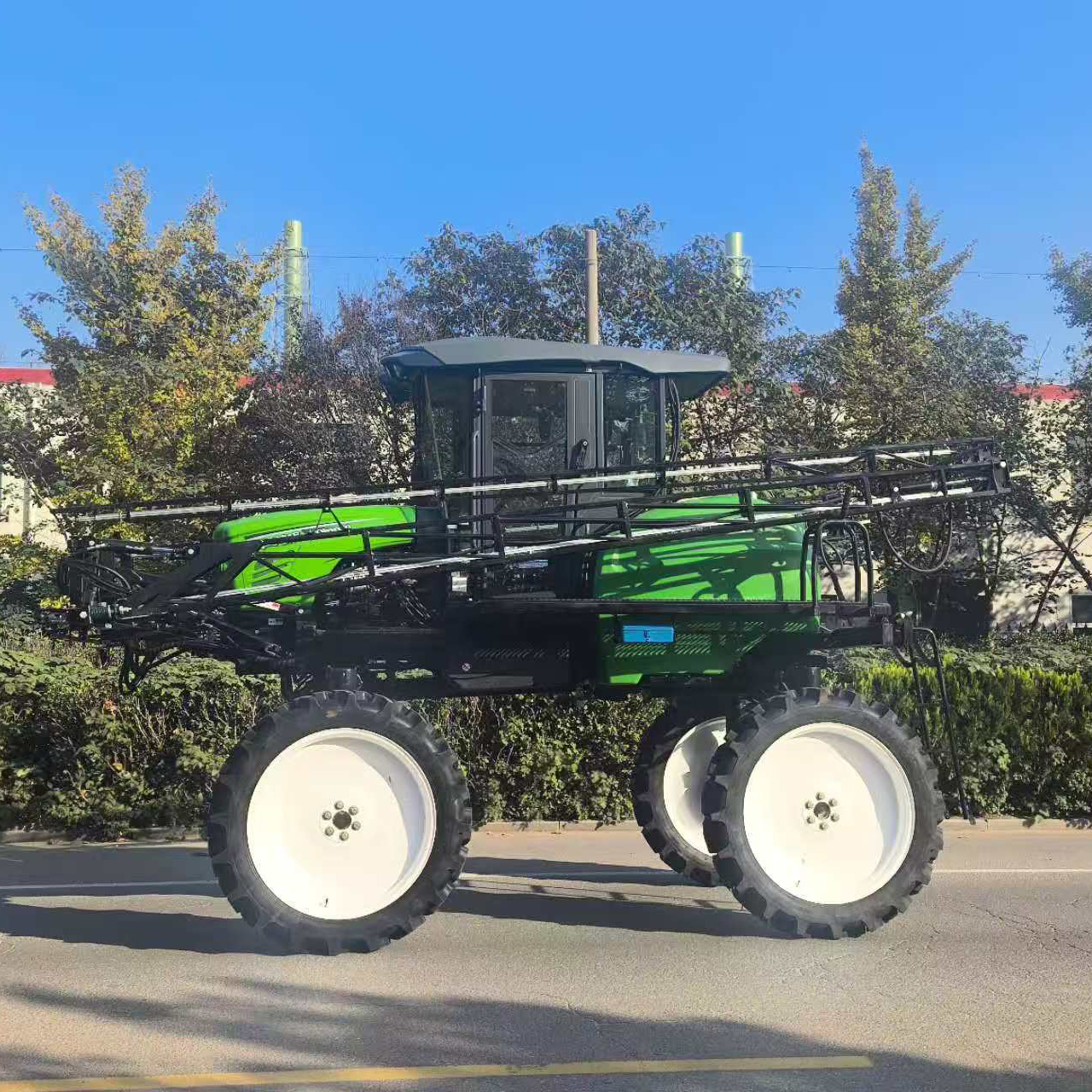

Self-propelled spray boom sprayer 3WPZ-1300GQ
Applicable terrain：
Classification：
Plant Protection Product Series
- Self-propelled spray boom sprayer 3WPZ-1300GQ Commodity name：
Key Words：
Plant Protection Product Series
Product Application Scope and Features
1. High work efficiency, 100 acres/hour, widely used for high-stalk crops such as sorghum, sunflower, and corn.
2. The machine adopts manual adjustment of four-wheel steering configuration, with precise steering and adjustment, good comfort in operation, and high driving safety.
3. The spray rod system is made of manganese steel welding, with high strength; the structure is a spatial trapezoidal structure, with small up and down shaking, good stability in use; it uses imported spring balance shock absorption to buffer the swing amplitude, protecting the spray rod safely; the left and right spray rods use angle-adjustable oil cylinders, which can effectively avoid the consistency of spraying vertical height on uneven land, effectively preventing the spray rod from scratching crops or damaging the spray rod system.
4. Equipped with a 1300L tank, 22-meter spray rod, and 1.90-meter ground clearance, greatly improving the machine's work efficiency.
Product Technical Parameters
| Item | Content | Unit | Model |
| 3WPZ-1300GQ Series | |||
| Overall Dimensions | Dimensions | mm | 5400×2850×4060 |
| Boom Length | mm | 22000 | |
| Boom Lifting Height | mm | 900-2400 | |
| Ground Clearance | m | 1.8 | |
| Wheelbase | mm | 2640 | |
| Track Width | mm | 2200-2600 | |
| Weight | kg | 3500 | |
| Cab Type | / | Air-conditioned Cab | |
| Spraying System | Working Pressure | Mpa | 0.4-0.8 |
| Tank Capacity | L | 1300 (LLDPE) | |
| Pesticide Mixing Method | / | Return Flow | |
| Spray Rod Length | m | 22 | |
| Work Efficiency | 3-9Km/h | 66000-198000 | |
| Fuel Consumption | L/h | 6 | |
| Nozzle Type | / | Conical Spray / 47 pieces | |
| Spray Rod Material | / | Aluminum Alloy | |
| Boom Position | / | Front | |
| Liquid Pump Structure Type | / | Diaphragm Pump | |
| Liquid Pump Drive Method | / | Hydraulic Motor | |
| Four-cylinder Four-stroke Water-cooled Diesel Engine | |||
| Engine System | Rated Power | Kw/r | 36.8/2400; 74/2400 |
| Battery Capacity | / | 24V/45AH | |
| Drive System | Driving Type | / | Four-wheel Drive |
| Steering Type | / | 2WD\4WD\Diagonal Drive | |
| Tire Type | / | Inflatable Tire | |
| Tire Outer Diameter | mm | 1350 | |
| Tire Width | mm | 200 | |
| Drive Axle Style | / | Adjustable Track Width | |
| Turning Radius | mm | 5300 | |
| Gear Shift Type | / | 12-speed Synchronized Transmission | |
| Travel Speed | Km/h | 0-25 | |
| Fertilizer Spreader | Spreading Width | m | None |
| Fertilizer Tank | L | None | |
| Self-selected | Fertilizer Spreader, Quantitative Spraying System, A-B Navigation, | ||
| Remarks | The above parameters are subject to change without notice. | ||
Production workshop
